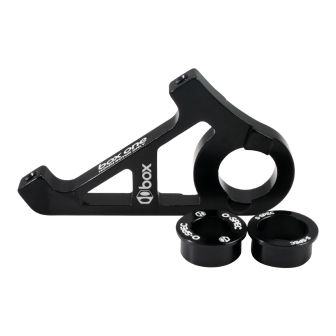

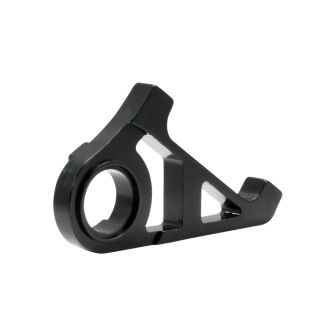

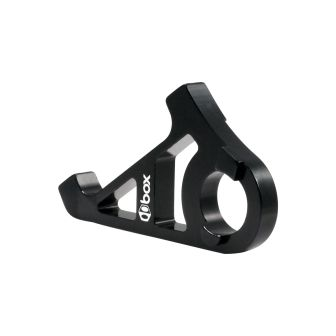

BOX ONE BMX DISC BRAKE ADAPTER (STANDARD 10mm FRAME DROPOUT) BLACK

$x.xx

Login to view price

Product Information

DESCRIPTION:
The all NEW Box Disc Brake Adapter is designed to help improve braking control on frames where disc brakes were not standard. Compatible with 2 types of dropouts and 3-10mm hubs, in the right configurations, the Box Disc Brake Adapter goes over your hub’s axle and mates with the frame’s dropout, allowing mounting of a standard post mount disc brake caliper.

NOTE 1: Please note this product is NOT universally compatible and we strongly recommend reading the Compatibility and Installation instructions for details before purchasing.

NOTE 2: This version is compatible with standard 10mm dropouts without inserts. Please see the compatibility section for more details.


SPECIFICATIONS:
Material: 6061-T6 Aluminum
Size: For 140mm Brake Rotor Only / Standard 10mm dropouts / Fits 3 different 10mm hubs (See below)
Color: Black
Weight: 60.00 Grams / 2.12 Ounces


ADAPTER COMPATIBILITY:
The Box Disc Brake Adapter is NOT compatible with all frames, and purchase/installation requires special attention to your frame’s dropouts for compatibility. We do not recommend composite frames for this adapter.

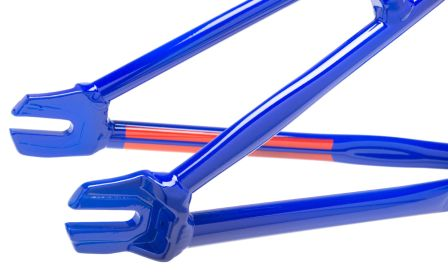

There are two different versions of the Box Disc Brake Adapter. This version is for standard 10mm dropouts - Standard dropout configuration, dropout must be between 6-8mm thick, and have a flat inside face. Found on many frames as this is a common standard.

Both variations of the adapter come standard with two adapter rings which makes the adapter compatible with 3 brands of 10mm hubs only. Will not fit hubs with 15/20 or step down axles.

- Box Three Pro Disc (Needs no adapter ring)
- Stealth 10mm Disc (Requires S-Spec adapter ring)
- Onyx 10mm Disc (Requires O-Spec adapter ring)



Product Code: 4225-100-BK
