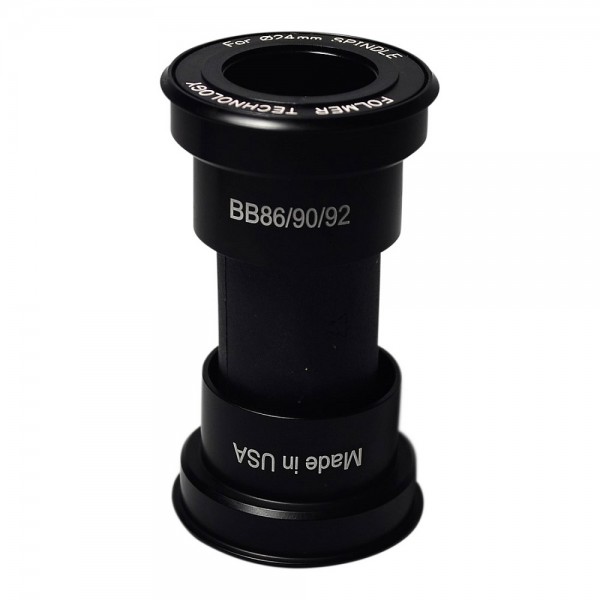

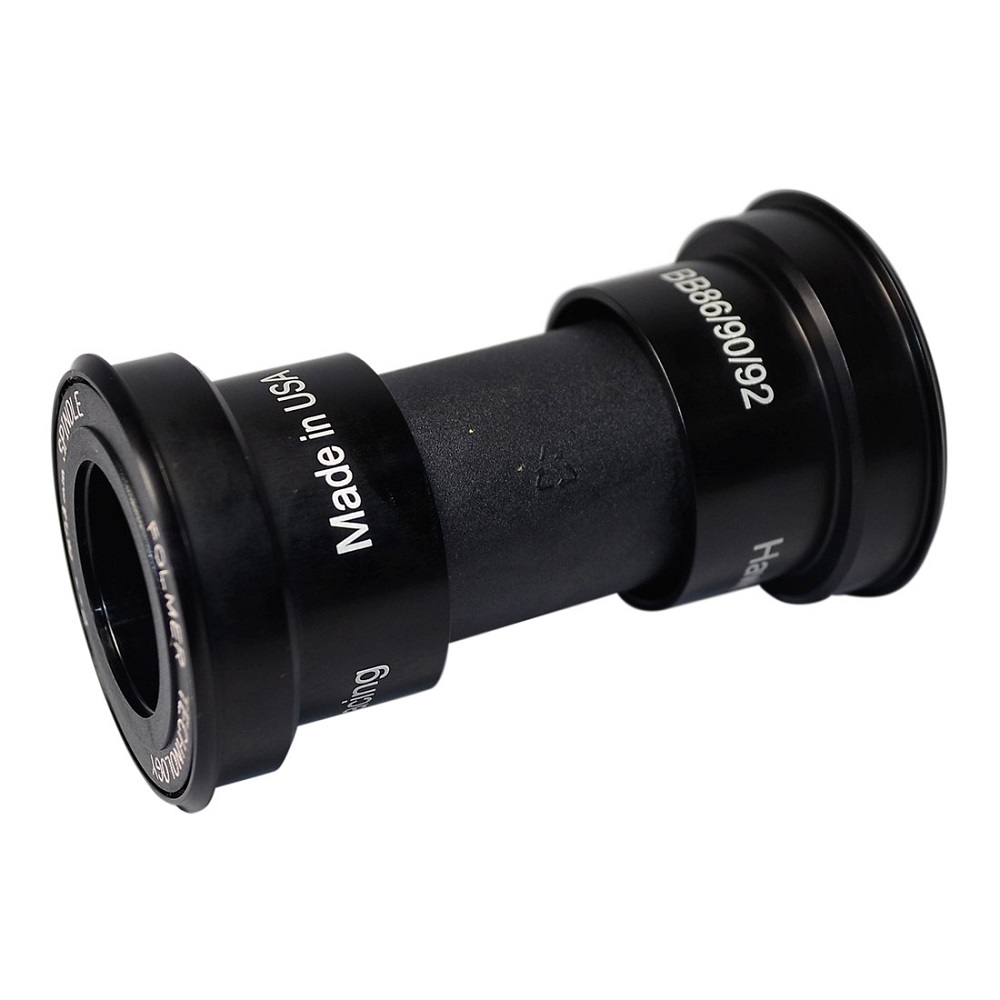

HAWK BB86/92 24mm INTEGRATED SEALED BOTTOM BRACKET BLACK

$x.xx

Login to view price

Product Information

DESCRIPTION:
The Integrated BB 86/92 was designed to combine the BB86 and the BB92 into one easy to use bottom bracket.  This system uses a pressfit cup that brings the final width of the system equal to threaded systems. The bearings are compatible with a 24mm crankset spindle such as Shimano and FSA, and they can be used with an adapter for SRAM 22/24mm cranksets (Not included). This bottom bracket is equiped with standard Hawk bearings with Folmer Technology, ISO and ABEC-3 certified – Made in Japan – Non-ceramic

The BB86/92 comes with a removable middle tube so it can be used with electronic shifters to ensure the cables do not rub on the crank spindle. This product can also be used without the middle tube.

NOTE: For 22/24mm SRAM/Truvativ cranks you will need to use an adapter for SRAM 22/24mm cranksets (Not included).
NOTE: For BMX cranks that use a 19mm spindle, road cranks with a 19mm spindle, and the FSA omega you will need our 19mm bushing kit which is sold separately.
NOTE: This bottom bracket is the perfect replacement for the Shimano SM-BB72-41, which fits a BB86 shell.


SPECIFICATIONS:
Material:  Aluminum 6061 Cups / Plastic inner shell
Size: 68mm or 70mm / 24mm spindle diameter
Color: Black
Weight:  79.2 grams / 2.79 ounces including plastic shell. One of the lightest in the industry. (72.8 grams / 2.57 ounces without shell)


Product Code: 1986-010-BK
