DESCRIPTION:

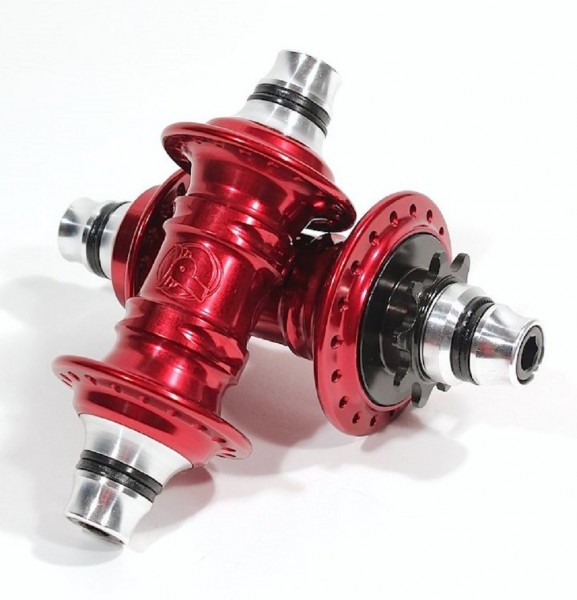

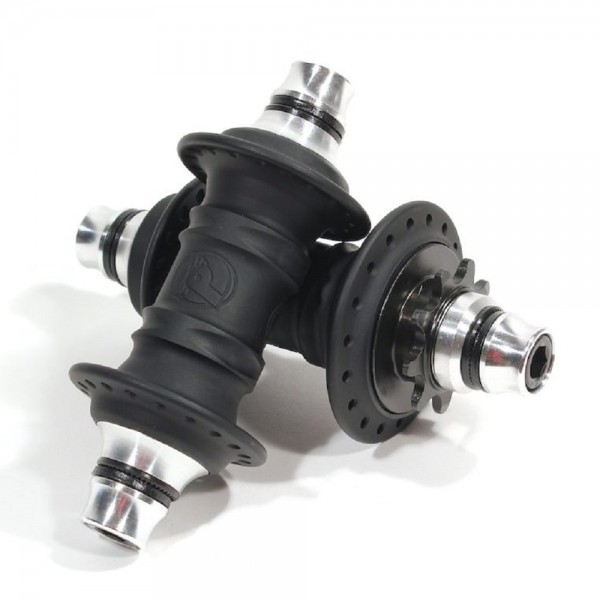

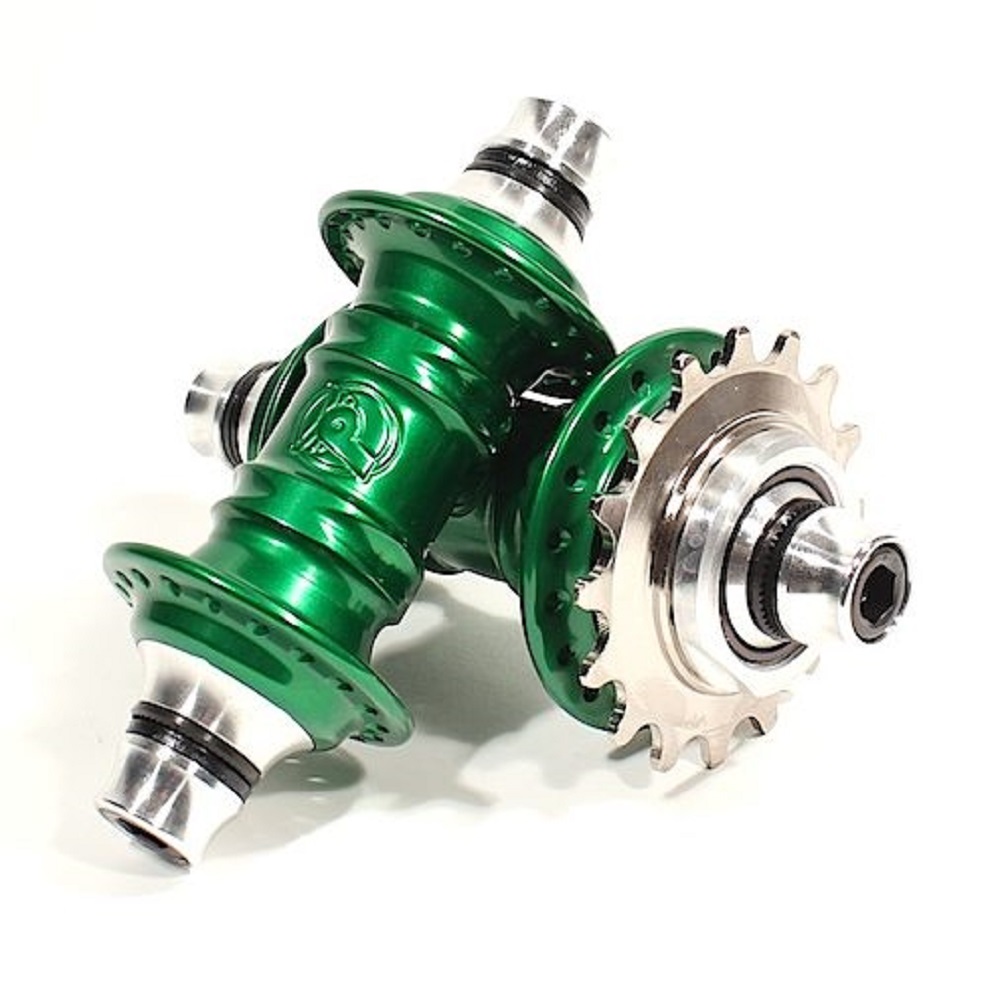

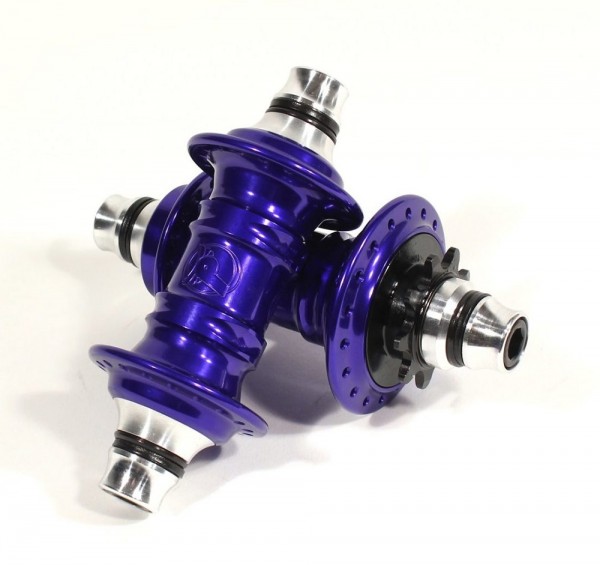

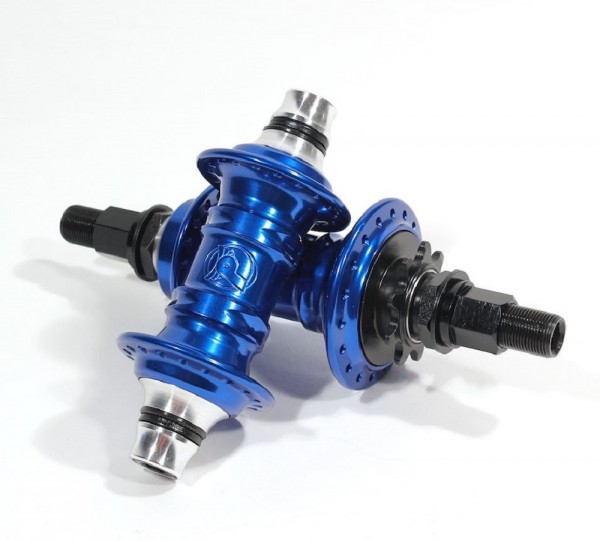

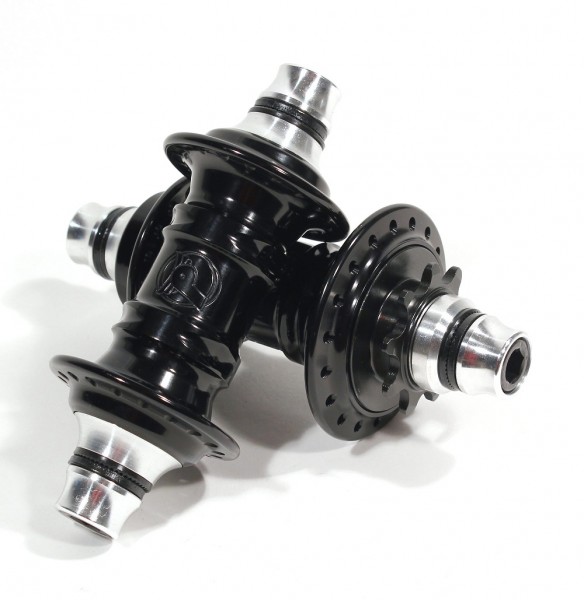

MINI CASSETTE HUBSET
BUILD YOUR OWN HUBSET (BYOH)
Choices for following:
-Hub Color
-Spoke holes/Drive side
-Axles(Front & Cassette)
-Axle Bolts(Front & Cassette): Choose any Chromo bolt option at NO EXTRA CHARGE!
-Cassette Driver
-Cog
-Profile Racing designed the Mini Hubset to be the best all around hubs available. They are suitable for trails, racing, street, and park use.
Aluminum or Chromoly hollow 3/8″axle for dramatic weight savings
Bolt choices for 3/8″ threaded axle:
-Standard 3/8 socket head bolts(8mm hex)- come with polished Volcano cones
-17mm Hex Head outer w/8mm internal hex
-Button Head w/8mm internal hex
CrMo or Ti 14mm axle options(14mm Alum nuts included) .
CrMo or Ti one-piece drivers.
Chromoly or Titanium splined drivers for Profile Cogs.
Standard CrMo Cogs, or upgrade to Aluminum or Elite CrMo Cogs.
RHD or LHD(36h only)
36h or 28h(RHD Only)
Standard BMX 110mm(rear) & 100mm(front) hub widths
*3/8’s aluminum axle NOT intended for heavy street riding.
SPECIFICATIONS:
Material: Aluminum, Chromoly
Size: 3/8, 14mm

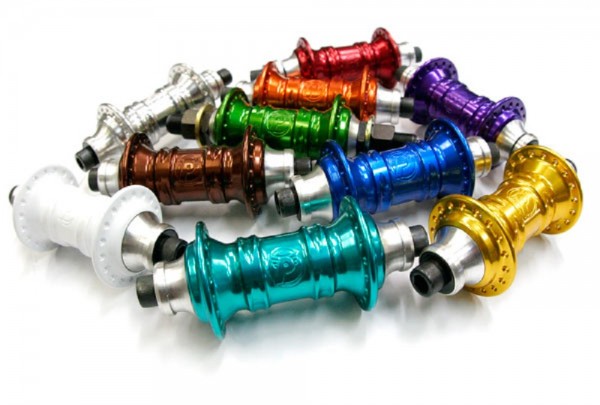

Color: Red, Black, Blue, Polished, Gold , Green, Purple, Matte Black, White
Weight: Mini Front Hub Weights:
Hub w/ 3/8 CrMo Axle Bolts: 8.15oz / 232g
Hub w/ 3/8 Ti Axle Bolts: 7.4oz / 206g
Hub w/ 14mm Mini Front GDH CrMo Axle + Al Axle Nuts: 11.35oz / 323g
Mini Cassette Hub Weights:
Hub w/ CrMo Axle Bolts with 9t CrMo Driver: 13.1oz / 372g
Hub w/ CrMo Axle Bolts with 9t Ti Driver: 11.95oz / 339g
Hub w/ Ti Axle Bolts with 9t CrMo Driver: 12.25oz / 348g
Hub w/ Ti Axle Bolts with 9t Ti Driver: 11.1oz / 316g
Hub w/14mm CrMo GDH Axle & 9t CrMo Driver: 17.65oz / 501g
Hub w/14mm CrMo GDH Axle & 9t Ti Driver: 16.5oz / 4681g
Hub w/14mm Ti GDH Axle & 9t Ti Driver: 13.4oz / 379
Product Code: 2816-200
